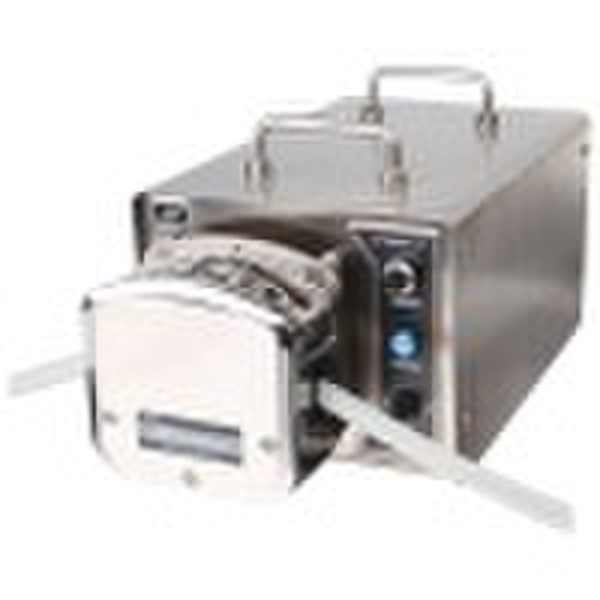

YT600-1J Pump

Introduction: The pump delivers flow rates from 600 to 11000 mL/min. The speed can be adjusted manually or automatically through external control interface. Driven by DC motor YT600-1J has higher torque and can drive double pump heads. Suitable for industrial applications which need high pressure and big flow rates.Specifications- Speed: 60-600 rpm, reversible- Speed control: 10 turn potentiometer- Power supply: AC220V±10% 50/60 Hz- Power consumption: <400W- Operating condition: Temperature o to 40°C, relative humidity<80%- External control: Start/stop control, speed control (1-10 kHz, 1-10V, 4-20Ma optional, 4-20 mA is standard configuration)- Dimensions (L×W×H): 325×236×193 (mm)- IP rating: IP54Functions and Features - Acceptable pump heads: YZ35-13, K 35- Suitable for industrial applications- Can be equipped with Longer Dispensing Controller for filling function when connecting single channel pump head. Parameters DrivePump HeadTubingFlow Rate (ml/min)Weight (kg)Power(W)YT600-1JYZ35 - 1373# 82#600 - 1100018.6400KZ3573# 82#600 - 1100019.62×YZ35-1373# 82#600-11000 Single Channel20.52×KZ3573# 82#600 – 11000 Single Channel20.5
