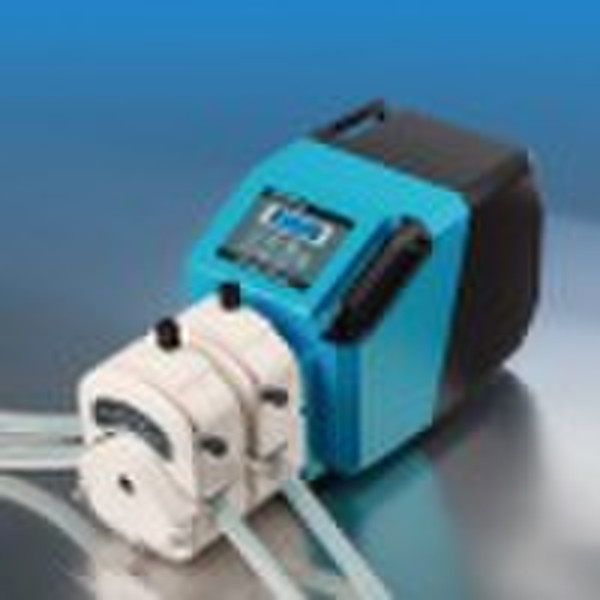

WT600-4F Pump

Introduction: WT600-4F is a high IP rating and high efficient pump with high-power DC brushless motor, it is suitable for working in dust and damp industrial environment. It is delivers flowrates from 100 to 11000 ml/min and dispensing volume from 100ml to 999 liters when loading YZ35-13 or KZ35 pump head. WT600-4F adopts 128*32 LCD to display all the running information and parameters; it is easy to operate through membrane keypad or can be controlled through standard external control module and RS485.SpecificationsFlow Rates: 100 – 11000 ml/minDispensing Volume: 100ml to 999 LSpeed: 10 – 600 rpmCopy No.: 0 – 9999, ‘0’ means continuous runningPause Time: 1 second to 99.9 minutesBack Suction: 0 to 9.9 revolutions (precision is 0.1 revolution)Calibration Time: 30 to 1800 secondsExternal Control Input: Control Start/Stop, Direction, Flow (0.0833 – 5V, 0.166 – 10V, 4 – 20 mA, 167 – 10kHz, only one mode need to be chosen when ordering pump)External Control Output: Start/Stop, direction, frequency 125-7500 HzCommunication: RS485Power Supply: AC176 – 264V 50/60HzPower Consumption: <300WOperating Conditions: Temperature: 0 – 40 °C Relative Humidity: <100%Dimension (L×W×H): 293.2×185×180.5Weight: 5.2 kgIP Rating: IP31 Functions and Features Suitable Pump Head: YZ35-13, KZ35Operating Mode: Press membrane to operate this pump.Direction Control: CW & CCW, Reversible.Prime: Full speed for fast filling and emptying.Back Suction: Prevent liquid from dripping.Display: 128×32 Graphic LCD displays all the information.External Control Input: Control Start/Stop, Direction and flow rates under flow rates modeFootswitch: Control Start/Stop of the pump.External Control Output: Output the signals of Start/Stop, direction and speed.Communication: Communicate with control computerFlowrate Functions: Deliver fluid at set flow rates.Dispensing Function: Set dispensing volume, copy number and pause time, etc.Memory Function: Store all the running information automaticallyCalibration: Acquire higher accuracyCooling Mode: Heat-emitting fanParametersDrive Pump HeadHousing MaterialTubingFlow RatesWeight(kg)WT600-4FYZ35-13 (1,2)PSU73# 82#100-1100013.65KZ35 (1,2)304 Stainless Steel(Singel Channel)15.7
