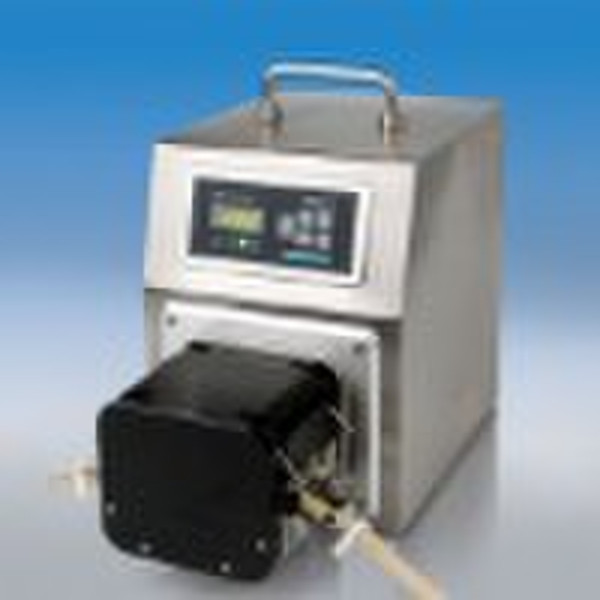

WT600-3J Pump

Introduction: WT600-3J is one kind of high IP rating and high-efficiency product, it features a maintenance-free brushless DC motor and application of specific integrated circuit with big torque (1.6N.M), small vibration. It can drive various single/dual channels pump heads to provide flow rate from 4.2 to 6000 mL/MIN. Specifications-Speed: 60-600 rpm-Speed precision: ±0.5%-Speed resolution: 1 rpm-Display: 3 Digital LED display rpm-Memory Function: Automatic memory speed, running direction and machine ID.-External control input: Start/stop, direction, speed control (0-5V,0-10V,0-20mA, 0-10KHz)-Communication port: RS485-Control Output: Start/stop, direction and speed.-Power supply: AC 176-264V 50Hz/60Hz-Power consumption: <190W-Cooling mode: Natural cooling heat-IP rating: IP55-Operation condition: Temperature 0 to 40°C Relative humidity<98%-Dimensions (L×W×H): 292×185×180(mm)-Weight: 6.3kg Functions and Features -High IP rating suitable for wet and dust environment-Big torque, high efficiency, maintenance-free-LED display speed and working status-Using membrane to control pump operation-Prime key: Fast filling and emptyting.-Start/stop, CW/CCW and speed can be controlled by external control.-Memory function: Storing the running parameters automatically-Progarm download functions: Reserve ISP port on PCB, program can be download and updated.-Cooling functions: Natural heat dissipation, ensure the temperature of drive not exceed the scope.-Output port: Output the work status of pulse, start/stop and direction. ParametersDrive Pump HeadTubingFlow Rates(mL/min)Weight(Kg)WT600-3JYZ151513# 14# 19# 16# 25# 17# 18#4.2 22806.7YZ251515# 24#102 17406.7YZII1513# 14# 19# 16# 25# 17# 18#4.2 22806.7YZII2515# 24# 35# 36#102 30006.7KZ2515# 24# 35# 36#180 60007.1DG15-2416# 25# 17#4.9 18007.2BZ2524#174 17406.6*DMD2515# 24# 35# 36#257 30008.72×YZ151513# 14# 19# 16# 25# 17# 18#Single Channel 4.2 22807.12×YZ251515# 24#Single Channel 102 17407.12×YZII1513# 14# 19# 16# 25# 17# 18#Single Channel 4.2 22807.12×YZII2515# 24# 35# 36#Single Channel 102 30007.12×KZ2515# 24# 35# 36#Single Channel 180 60007.92×BZ2524#Single Channel 4.9 18006.9*Max. speed for DMD25 is 350rpm
