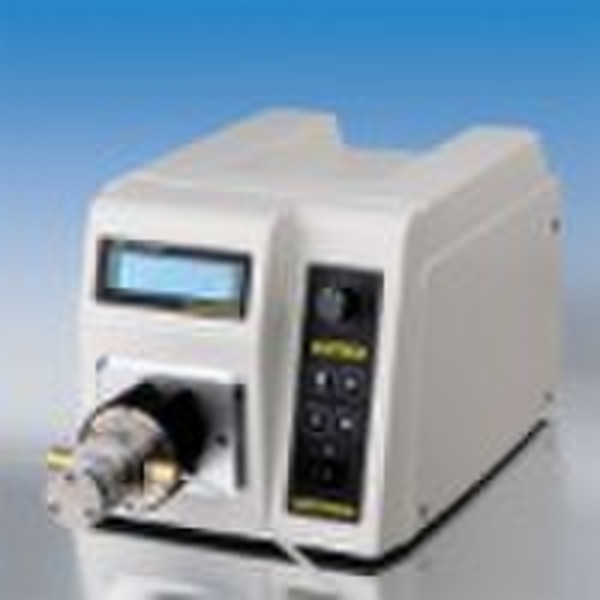

WT3000-1FB Gear Pump

Introduction: WT3000-1FB gear pump has two work modes of flow mode and dispensing mode. It delivers flow rates from 85.7 to 2571.4 mL/min and the dispensing volume is from 0.1 mL to 999L. 128×32 LCD displays the parameters and information. The compact and precise gear pump heads are noiseless, pulsation-free and suitable to transfer, high temperature and high pressure fluids.Specifications- Flow rates: 85.7 2571.4 mL/min- Dispensing volume: 0.1 mL 999 L- Copy number: 0 9999 "0" means running continuously- Pause time: 1s 999 h- Working pressure: ≤1 MPa- Fluids viscosity: ≤200 cSt- External control input: Start/stop control, flow rates control (0.5-5V, 1-10V, 4-20 Ma, 1-10kHz optional)- External control output: Pulse output 0-12.5 kHz (corresponding to 0-3000 rpm), start/stop output- Communication interface: RS485- Power supply: AC 220/110V 2 0%, 50Hz/60Hz- Power consumption ≤150 W- Operating condition: Temperature 0 to 40°C, Relative humidity < 90% (no dew)- Drive Weights: 5.1 kg- Drive Dimensions: 290×207×180 (mm) (L×W×H )- IP Rating: IP31Functions and Features - Acceptable pump heads: MG/MS204, MG/MS209, MG/MS213- Suitable to transfer viscous, high temperature fluids or transfer the fluids in pressure condition- Compact size, noiseless, pulsation-free- Dispensing volume, copy number and pause time can be set- Flow rates and dispensing volume can be calibrated for higher accuracy Combine the membrane keypad and rotary encoder switch to make the operation easy- Prime function for fast filling and emptying- The pump has external control input and output ports- Store the running parameters automatically- Decoupling will occur when the pump load exceeds the maximum coupling torque provided by the alignement of the two magnetsParameters DrivePump HeadSpeed (rpm)Flow Rates(mL/min)Weight (kg)WT3000-1JBMG/MS204300-300085.7-857.15.02MG/MS209171.4-1714.35.03MG/MS213257.1-2571.45.05
