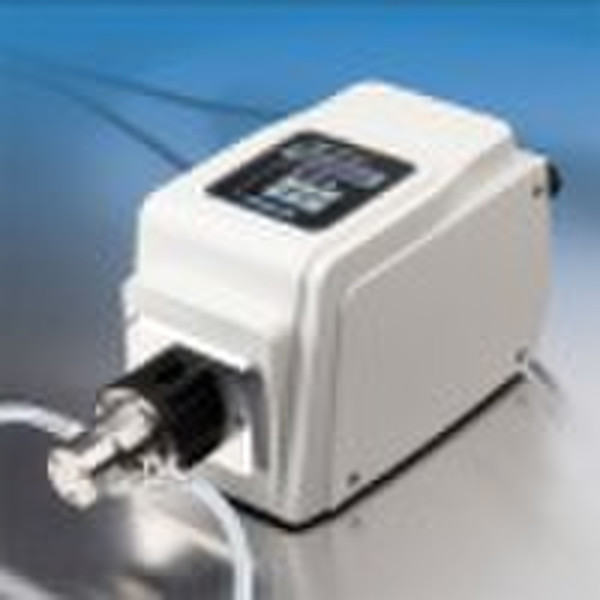

WT3000-1FA Gear Pump

Introduction: WT3000-1FA micro gear pumphas two work modes of flow rate and dispensing to deliver flow rates from 85.7 to 2571.4 ml/min and dispense liquid volume from 0.1 ml to 999 liter. It adopts 128×32 LCD display all the running parameters. Stainless pump head is compact and precise with the features of low noise and small pulse. It is suitable to deliver high pressure and high temperature liquid.SpecificationsSpecifications- Flow rates: 85.7 - 2571.4 ml/min- Dispensing volume: 0.1 mL - 999L- Copy No.: 0-9999, "0" means running continuously- Pause time: 1s to 999 hours, Min. adjustment resolution: 0.1s- Flow rate calibration time: 30-1800 seconds, adjustment resolution: 1s- External input control: Flow rate control (4-20 mA, 0.5-5V, 1.0-10V, 1.0-10KHz), start/stop control.- External output control: 1.25-12.5kHz frequency output corresponding to 300-3000 rpm; start/stop status output- Diameter of particale in liquid: ≤10 micron- Viscosity of liquid: ≤200 CST- Max. outletMG204: 0.8MpaMG209: 0.8MpaMG213: 0.3Mpa- Power supply: AC90-130V 50Hz/60Hz- Liquid temperature range: -45-50 °C with PTFE gear, -45-120°C with PEEK gear.- Communication: RS485- Power consumption: ≤50 W- Operating condition: Temperature 0 to 40°C, Relative humidity <90% (no dew)- Drive weights: 2.83 kg- Drive dimensions: 232×142×149(L×W×H)(mm)- IP rating: IP31Functions and Features Functions and Features:- Acceptable pump heads: MG204, MG209, MG213- Flow rate function: Deliver the liquid according to the set flow rates.- Dispensing function: Dispensing volume, cipy number and pause time can be set.- Calibration function: The flow rates and the dispesning volume can be calibrated to increase the accuracy.- Operating mode: Membrane keypad- Prime function for fast filling and emptying- External control input: Control the flow rates and start/stop of the pump- External control output: Output start/stop and speed signal.- Footswitch: Control the start/stop of the pump- Communication function: Realize computer control through RS485 interface.- Memory function: Store the running parameters automatically.- Cooling mode: Heat-emitting fanParameters DrivePump HeadSpeed (rpm)Flow Rates(mL/min)Weight (kg)WT3000-1JAMG204300-300085.7-857.13.25MG209171.4-1714.33.26MG213257.1-2571.43.28
