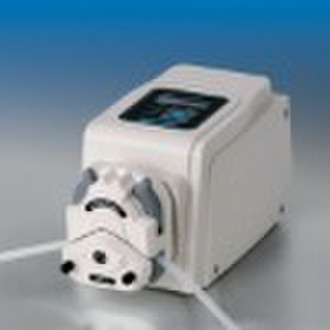

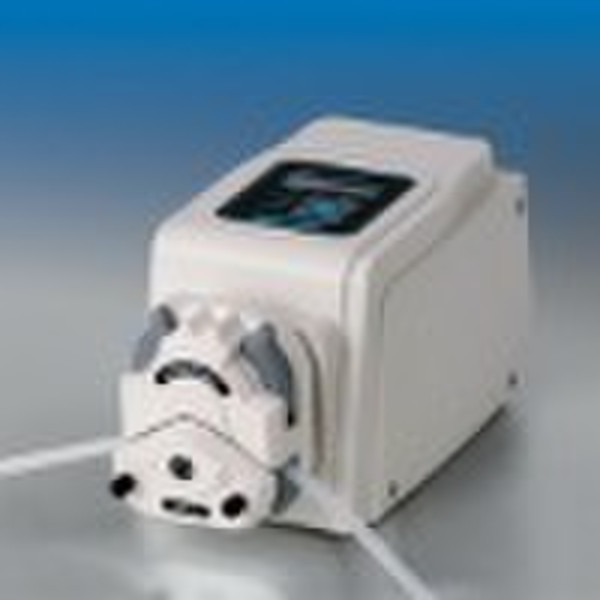

BT100-2J Peristaltic Pump

Introduction: Acceptable pump heads for BT100-2J are YZ1515x, YZ2515x, YZII15, YZII25, DG-1 and DG-2. The pump provides flow rates from 0.0002 to 380 ml/min. The speed can be adjusted manually or automatically through external control. Store the running parameters automatically. Easy to operate.SpecificationsSpeed: 0.1 to 100 rpm, reversible Speed precision: 0.1 rpm Speed control: Membrane keypad Display: 3-digit LED displays current rpm Communication interface: RS485 External control: Start/stop, cw/ccw control and speed control (0-5 V, 0-10 V, 4-20 mA and 0-10KHz)Power supply: AC 90V-260 V 50/60 Hz Power consumption: < 30 W Operating condition: Temperature 0 to 40 C° Relative humidity < 80% Dimensions (L × W × H): 232 × 142 × 149 (mm) Drive weight: 2.3 kg IP rating: IP 31 Functions and Features Applicable pump heads: YZ1515x, YZ2515x, YZII15,YZII25, DG-1, DG-2 Prime key for fast filling and emptying Adjust speed manually or automatically through analog interface. Memory function, storing the running parameters automatically Membrane keypad, easy to operate Good performance and low price At normal lab conditions ParametersDrivePump HeadTubingFlow Rates(mL/min)Weight(kg)BT100-2JYZ1515xYZ II1513# 14# 19# 16# 25# 17# 18#0.07 - 3803YZ 2515x15#1.7 - 1503YZ II2515#1.7 - 1503DG-1(6 Rollers)0.00025 - 482.5DG-1(10 Rollers)Wall Thickness 0.8 1.0 (mm)0.0002 - 322.5DG-2(6 Rollers)Inner Diameter 3.17 mm0.00025 - 48 (Per channel)2.6DG-2(10 Rollers)0.0002 - 32 (Per channel)2.6 II
