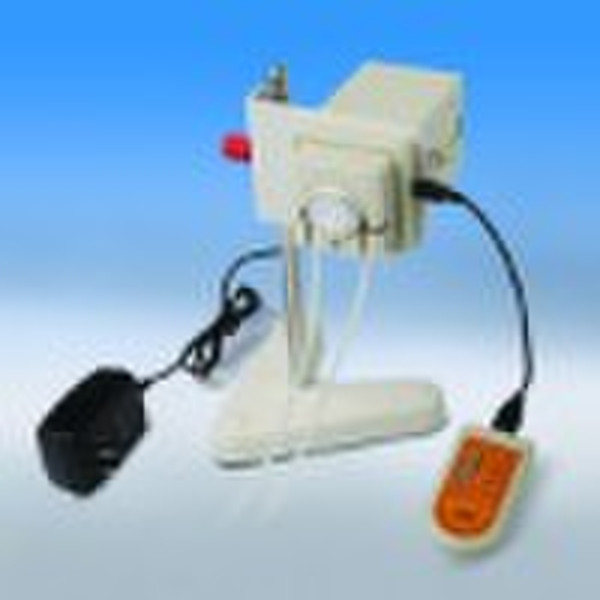

BQ50-1J Pump

Introduction: BQ50-1J peristaltic pump combines low flow and a compact size into a single pump that mounts in your equipment rack or panel. The pump delivers flow rates form 0.006 to 24 mL/min. And it can be operated through hand-held remote controller, analog interface or RS485. White and black casing are available. Specifications-Speed:1 to 50 rpm, reversible -Speed precision: 1 rpm (External Control 0.1 rpm) -Speed control: Hand-held remote controller -Display: Hand-held remote controller displays speed range and running status -Analog interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control -Communication Interface: RS485 -Power supply: DC 12 V/1A or Adapter -Power consumption: < 10 W -Operating condition: Temperature 0 - 40 °C -Relative humidity < 80% -Drive dimensions (L × W × H): 135 × 72 × 72 (mm) -Controller dimensions (L × W × H): 105 × 50 × 16 (mm) -Drive weight: 0.5 kg -IP rating: IP 31 Functions and Features StandardOptionalConfigurationAccessories1.Pump Head1.Small V-base2.Drive2.Polished Stainless3.Hand-held Steel Frame Tube Remote Controller3.Fixed Plate4.Adapter ParametersDrive Pump headFlow rates(mL/min)Tubing(mm)Weight(kg)BQ50-1JWX100.0002 - 20Wall Thickness: 0.8 - 1.00.5Inner Diamete: ≤ 4.8ex. 0.5 × 0.8 1 × 1 2 × 1 2.4 × 0.8 3 × 1 etc.
